Uses of empty can depalletizers:
This model is mainly used for the emptying tank operation of
tinplate cans and aluminum cans. The empty cans stacked on the
pallets are pushed onto the net conveyor layer by layer from top to
bottom, and then sent to the net conveyor by the conveyor Empty
tank jet washing machine, replacing the manual tank row, saving
manpower.
Empty can depalletizer excellent performance:
1. To replace the artificial row tank and the traditional empty
tank unloading tanker, can save a lot of labor, improve production
capacity.
2 using programmable computer control system to improve the
accuracy of mechanical action, and easy to operate.
3. Pallet lifting platform self-locking lift, Pallet Laminating
machine using the cylinder movements, action stable.
4. Push the tank can choose continuous action or a single cycle of
action, high adaptability.
5 for a variety of sizes tinplate cans and aluminum cans of empty
cans homework.
Empty can depalletizer perfect configuration agency:
1. Pallet Conveyor Forklift pallet stack covered empty cans, placed
on the pallet conveyor, and then convey the conveyor to the host
pallet lifting platform; pallet conveyor drive motor controlled by
the inverter , Slowly activated by the stop state activated during
delivery, to avoid the sudden activation of the danger of dumping
empty cans.
2. Pallet positioning device Lever principle and micro switch
composed of positioning device to sense the empty stack into the
host pallet lifts the correct location, and unloading empty cans
after the descent of the positioning plate.
3. Pallet Lifting Table Pallet Lifting table is positioned after
the empty pallets sent to the unloading cans height, when unloading
empty cans, and then empty pallets placed on the conveyor down; all
the movements up and down all By the self-locking lifting system
device control, and can individually adjust the speed of ascent or
descent to meet the operational needs.
4. Unloading tank device using pneumatic cylinder or hydraulic
motor driven can pushing device, the entire layer of empty cans
pushed to the net conveyor, and then return to the ready position,
continue to push the next floor; all motion positioning by the
photoelectric switch Control, but also can choose continuous action
or single-cycle unloading tank.
5. empty pallets Stacking plate Slab institutions unloading empty
cans after empty pallets, empty pallets by empty conveyor to the
empty pallet transfer table, and then sequentially stacked to a
certain height, and then stack the stack Remove the board.
Empty can depalletizer main technical parameters:
Removable size height 2300mm, suitable for tray 1100mmx1400mm;
Production capacity of 300-1000 cans minutes;
Inverter control and lift scraping bottle two effects, the rest of
the manual operation.
Applicable object size: diameter 50mm ~ diameter 153mm, height
50mm-height 270mm;
Applicable objects: all kinds of metal cans, plastic bottles, glass
bottles, etc .;
Overall dimensions: length 10500mmx width 3000mmx height 3500mm
Power parameters: 3x380V 7kW;

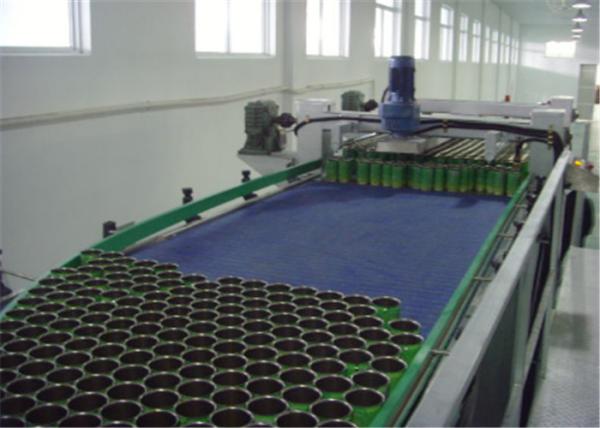

Machine picture
