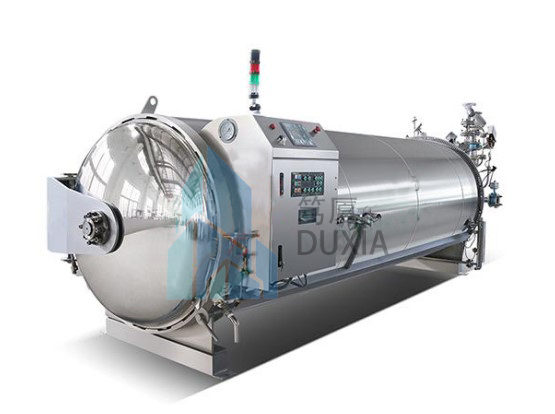

Sterilization for Canned Meat Production Line Stainless Steel
basket PP layer 4-wheel trolley
Discription:
Technical parameter:
| Item | Content |
| Inner diameter/length/capacity | 800mm /1400mm/0.82m3 |
| Design pressure | 0.35 Mpa |
| Max working pressure | 0.30 Mpa/ |
| Max working temperature | 145℃ |
| Install power | 3KW |
| Supply voltage | 380 V(or customer’s requirement)/50HZ |
| Size of tray | 700mm×500mm×500mm |
| Material of body | Sus304 stainless steel |
| Thickness of body | 4mm |
| Dimension | 2800x1500x1600mm |
| Weight | 1000kg |
| Water quality required | Cooling water: pipe water, chloride ion content are not allowed to
exceed 25mg/L Processing water: soft water hardness≤0.003mmolI/L |
Consumption (processing temperature 121centi degree. holding time
20 minutes, cooling time 15minutes)
| Item | Content |
| Power | 1.5kw/h/per times |
| Steam | 40kg/per times |
| Soft water for sterilization | 82L |
| cooling water | 1600L(recycled) |
| Time (standard) | Loading 2min＋raising temp 10min＋holding time 20min＋cooling
15min＋discharge 2min Total: 49min |
| Content | Type |
| Power | >3kw/380V/50(design as client request) |
| Water quality required | Processing water: soft water hardness≤0.003mmolI/L |
| Air compressor | air output: 0.3m3/min; pressure: 10kg |
| Cooling water tank | 2m3 |
| Soften water system | 500L/H |
| Boiler | 0.5T/0.7mpa |
Capacity
| (Hot filling :Production temperature before sterilization 70-80
degrees ) |
| One batch for 320g can | 2340 can |
| One batch for 350g can | 1470 can |
One layer include about 13or 12 pieces of canned, there is 13 lines
totally for the size:80*150mm
total is 7 layers.
*Note: Only is two baskets for your capacity, this picture only is
loading reference.
We offer to you are perfectly suited for Sterilization –
Pasteurization - Cooking of all types of products such as: Fruit
and vegetables, raw or processed/Meat and meat based products/Raw
milk and milk products/Fish and seafood/Ready meals/Baby food/Pet
food, etc…
Packed in any type of container: cans, tins, aluminum, glass jars,
plastic bottles, pouches, carton boxes, plastic trays, etc…
Special machine function:
l Automatic control by PLC computer/order input by touch screen
easily.
l Record of temperature curve. And time curve.
l Electronic and mechanical interlocking safety system.
l Electronic and mechanical protection of over pressure.
l Electronic automatic protection of overheats.
l Temperature Abnormal Alarm
l Pressure Abnormal Alarm.
l Water level abnormal Alarm
l Operation Abnormal alarm
l Automatic PID temperature controller, temperature error
within±0.5℃
l Temperature contrast in the autoclave (heat distribution):.5℃
l Electronic corrector of temperature contrast
l Gradual cooling.
l Efficientmaintenance-free heat ex-changer
l Processing water recycling system
l Suit for packages: soft package, (CPP+PAaluminum foil,
air-packed)/glass bottle/tin plastic/aluminum tray)
l Processing with spray from side
l Raise and reduce temperature directly (selectable by user)
