Product Name

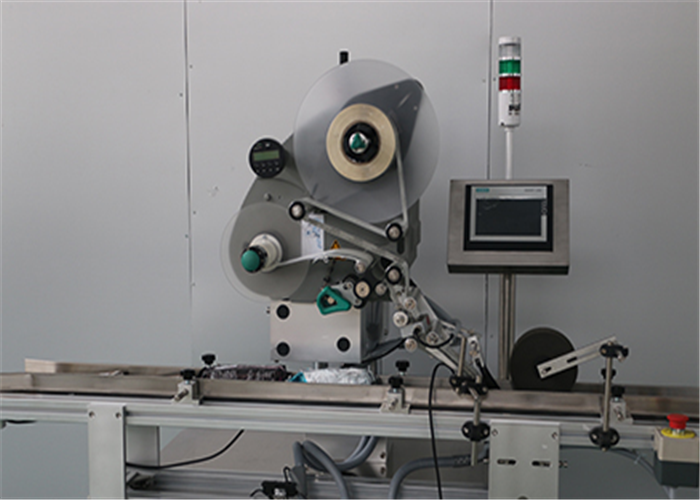

Automatic Labeling Machine For Upper Surface Bottle Cap Bottle
Bottom
Description
Basic purpose:
Widely used in various industries before or after forming the
surface of the labeling needs, such as the bottle of wine industry
bottle or bottom labeling, labeling of daily necessities in the
lunch box and other industries in the carton before and after
forming the plane labeling and so on , Can be achieved on the
surface of the automatic labeling; can also be used for the
pharmaceutical industry, a product packaging, two packaging, three
packaging information on the logo associated with the relevant data
to achieve intelligent traceability, improve product security
anti-channeling Function of goods
Features:
The overall material of the device is stainless steel and aluminum
alloy, the design of the mechanism is stable and easy to operate,
the layout is beautiful and generous;
Using world-renowned electrical components, quality and stability;
Transparent label stickers are not blistering, sticker no folds;
Supporting agencies using a large sponge roller wheel so that the
label more secure attachment;
Power clamping mechanism to ensure that the labeling position is
fixed, greatly improving the labeling accuracy;
operating system:
Multi-functional man-machine interface, production count, parameter
adjustment and other visual monitoring, with rich help function and
fault display;
Automatic detection of label length and other functions;
Optional:
Optional hot stamping machine or Pen Maji flexible configuration;
Dedicated sensor for transparent and opaque labels;
Automatic dosing agencies and vacuum adsorption conveyor belt;
Increase the symmetry of the bottom of the labeling engine, can be
achieved at the same time labeling requirements
Specifications
Model PLM
Production (pieces / minute) 50-200 pieces / minute (with material
and label size)
Labeling accuracy ± 1.0 mm
Label type sticker, transparent or opaque
The inner diameter of the label 76 mm
Label outside diameter 350 mm (max)
Label size length 10-300mm, height 10-200mm
Labeling object size diameter length 60-380mm,width 60-350mm
Working pressure 0.6Mpa
Power 220VAC ± 10% 50Hz, 0.6Kw
Suitable ambient temperature 5-40 ℃, humidity 15-85%
(non-condensing)
Weight (kg) 300kg
Machine size 2200 (L) 800 (W) 1500 (H) mm
Advantage:
Advanced design and professional technology, precise manufacturing
is our remarkable characteristics. Our company already pass quality
management system, established integrity Quality Guarantee System,
to insure the quality and performance of our products.
Our company devote to digesting and absorbing international
advanced science of processing and automatic equipment. We have
cooperated with company in Canada, Italy, Switzerland for long
time. We have developed various advanced filling, packaging and
conveying equipments and we have reached to professional level. Our
automatic production system is widely used in food, beverage, dairy
products, canned products, cosmetic, lube, medicine, chemistry,
etc.
